Activity of Baicalin Against Human Cytomegalovirus In Vitro and Its Effect on the Apoptosis of Human Embryo Lung Fibroblasts Infected with Human Cytomegalovirus
刘杨, 黄媛, 廖毅, 秦文卿, 刘玲玲, 李革, 舒赛男, 方峰
华中科技大学同济医学院附属同济医院儿科学系,武汉 430030
LIU Yang,, HUANG Yuan, LIAO Yi, QIN Wenqing, LIU Lingling, LI Ge, SHU Sainan, FANG Feng,
Department of Pediatrics, Tongji Hospital, Tongji Medical College, Huazhong University of Science and Technology, Wuhan 430030, China
Objective To elucidate activity of baicalin against human cytomegalovirus (HCMV) in vitro, and explore its effect on apoptosis of human embryo lung fibroblasts (HEL) infected with HCMV. Methods CCK-8 kit was used to determine the maximum tolerated dose (MTC) of HEL cell to baicalin while the anti-HCMV median efficacious concentration (EC50) of baicalin was determined by standard plaque reduction method. After treatment with baicalin of different concentrations for 24, 48, 72 and 96 h, cell apoptosis and pro-caspase-3 expression was detected by flow cytometry and Western blotting, respectively. Results The MTC of baicalin was 20.6 μg·mL-1; The EC50 of anti-HCMV of baicalin was 16.13 μg·mL-1; The apoptosis rate increased gradually in the groups with low and high multiplicity HCMV infection at early time, showing significant dose-dependent manner. While the ratio of apoptotic cells was going to decrease in high multiplicity infection group 96 h after the infection. The expression of pro-caspase-3 was significantly higher in high-dose baicalin treatment group than in the infection control group (P<0.05). Conclusion Baicalin has a direct anti-HCMV effect in vitro. One of the mechanisms might be related with it inhibiting cell apoptosis and antagonizing activation of pro-caspase-3.
Key words:
Baicalin
;
Human cytomegalovirus
;
Human embryo lung fibroblast
;
Apoptosis
;
Pro-caspase-3 expression
人巨细胞病毒(human cytomegalovirus,HCMV)是一种世界范围内普遍感染的双链DNA病毒,一旦感染将终身携带。我国是HCMV感染的高发地区,人群抗HCMV-IgG阳性率高,为86%~96%[1]。HCMV感染对胎儿、婴幼儿、器官移植患者、艾滋病患者等免疫低下人群可造成严重损害,甚至危及生命。但是,一直以来,抗HCMV感染药物的研究进展缓慢,能用于临床的抗HCMV药物寥寥无几,故寻找和开发安全、副作用小而且疗效佳的抗HCMV药物一直是医药学界的努力方向和研究任务。黄芩具有泻火解毒、清热燥湿等功效。国内外学者已经发现,黄芩提取物黄芩苷可以抑制流感病毒、登革热病毒、单纯疱疹病毒-Ⅰ型(herpes simplex virus type 1,HSV-Ⅰ)、HSV-Ⅱ等多种病毒的复制[2-5]。本课题组前期在黄芩苷抗小鼠巨细胞病毒(murine cytomegalovirus,MCMV)的整体研究中发现,黄芩苷对MCMV具有直接抑制作用,可显著下调MCMV感染小鼠唾液腺病毒滴度,减轻MCMV感染小鼠的肝脏病变[6]。因巨细胞病毒具有严格的宿主种属特异性,故考虑黄芩苷是否对HCMV也具有同样的抗病毒活性,抗病毒作用机制如何,笔者尚未见研究报道。调控细胞凋亡是HCMV致病的重要机制之一。本课题组前期研究发现,HCMV肝炎患儿,肝组织细胞凋亡率为53.72%,显著高于正常儿童的肝细胞凋亡率7.19%[7]。DOU等[8]发现,HCMV感染造成的血小板减少症也是通过诱导产板巨核细胞祖细胞的过度凋亡造成。本课题以HCMV感染的人胚肺成纤维细胞(human embryo lung fibroblast,HEL)为体外模型,检测黄芩苷体外抗HCMV的活性,并从细胞凋亡的角度探讨黄芩苷抗HCMV可能作用机制。

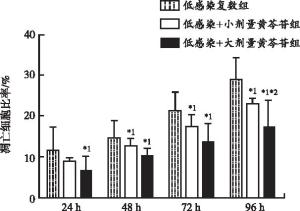

Fig.1
Effect of baicalin on apoptosis ratio of HEL with low multiplicity infection(x¯±s,n=5) Compared with low multiplicity infection group, *1P<0.05; Compared with low multiplicity infection and low dose baicalin group, *2P<0.05
Fig.2
Effect of baicalin on apoptosis ratio of HEL with high multiplicity infection(x¯±s,n=5) Compared with high multiplicity infection group, *1P<0.05
图3
4组72 h pro-caspase-3表达量 A.模拟感染组;B.高感染复数组;C.高感染+小剂量黄芩苷组;D.高感染+大剂量黄芩苷组
Fig.3
Pro-caspase-3 expression of four groups at 72 h A. mimetic infection group; B. high multiplicity infection group; C. high multiplicity infection and low dose baicalin group; D. high multiplicity infection and high dose baicalin group
Fig.4
Adjusted value κ of pro-caspase-3 level in four groups(x¯±s,n=5) A. mimetic infection group; B. high multiplicity infection group; C. high multiplicity infection and low dose baicalin group; D. high multiplicity infection and high dose baicalin group. Compared with mimetic infection group, *1P<0.01; Compared with high multiplicity infection group, *2P<0.05
